Pumper Appliance
Heavy Duty Pumper appliance

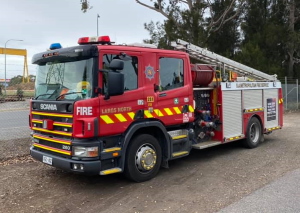

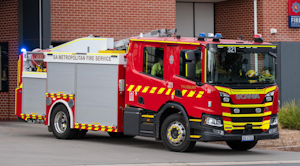

281 Pumper, based at Largs North Station 321 Pumper, based at Salisbury Station

A Pumper appliance carries approximately 1200 litres of water, and is fitted with a large volume power take off pump enabling large pressures to be produced for multi storey buildings and incidents which require large volumes of water. These appliances are designed to be connected directly to a hydrant on arrival, with the appliance tank being sufficient till this is acheived. Whilst the pump is in running mode, the appliance cannot be moved and becomes a fixed resource.

This style of Pumper is the most common type of appliance in the fleet and will be found in most stations across the state. The type number for this appliance is '1', with a '2', '11' and '12' if more than one of the same appliance is in the same Station.

Specifications

Each Pumper appliance carries a basic set of equipment, which can include:

  • Breathing Apparatus
  • Hazmat
  • RCR Heavy / Light
  • Rope Rescue
  • Lighting
  • Generator
  • PPV Fan
  • Rubber Hose (side line)
  • 64 mm filler length
  • 38 mm hose
  • 64 mm hose
  • Suction hose
  • Standpipe & key
  • First Aid kit
  • GRN radio
  • GRN handheld radio
  • Foam
  • Assorted Extinguishers
  • Safety vests
  • Traffic Cones

Additional equipment may be carried on the Pumper appliance, depending on the station requirements. This equipment may include:

  • Halligan tool
  • Chainsaw
  • Quick cut saw
  • PPV Fan
  • Lighting
  • Generator

For details on other SAMFS appliances, goto the SAMFS Appliance page

Please Note: The above information is provided as an example of a typical appliance of this type. Actual equipment and configuration of appliances may vary to suit requirements of the station to which it belongs.
